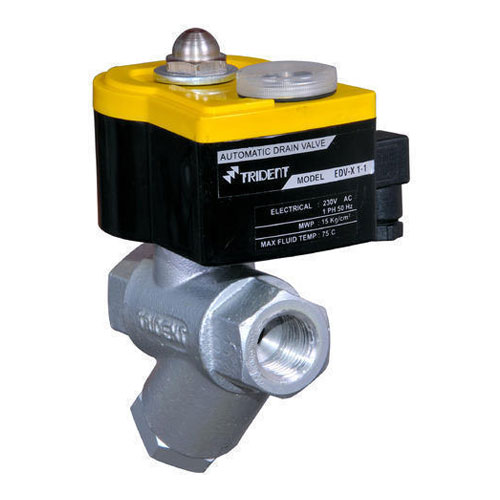

EDV-X AUTOMATIC DRAIN VALVES
Specifications
- Input voltage (AC) 230
- Average power consumption (watts) 7
- Min. working pressure (Kg/cm2(g) 2
- Max. working pressure (Kg/cm2(g) 16
- Timing Cycle(min) 1 to 120
- Drain (Sec) 1 to 25
- Valve orifice (mm) 1.3
- End connection inlet 1/2” BSP(F)
- End connection outlet 1/2” BSP(F)
- Environmental Protections IP 55
- Maximum fluid Temperature (Deg C) 75
- Maximum condenstate discharge quantity at 7Kg/cm2(g) (Liters/hours) 29
- Air compressor after cooler (cfm) 100
- Wet Air receiver (m3) 1
- Prefilter (cfm) 800
- Refrigeration dryer (cfm) 200
- After filter (cfm) 800
- Dry Air receiver(m3) 1
- Valve Dimension LxBxH (mm) 97x90x146
- Weight (Kg) 0.65

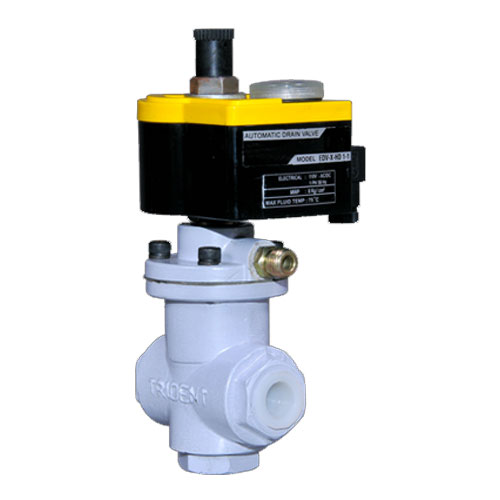

EDV X HD11 AUTOMATIC DRAIN VALVES
Specifications
- Input voltage (AC) 230
- Average power consumption (watts) 7
- Min. working pressure (Kg/cm2(g) 4
- Max. working pressure (Kg/cm2(g) 16
- Timing Cycle(min) 1 to 120
- Drain (Sec) 1 to 25
- Valve orifice (mm) 12.5
- End connection inlet 1/2” BSP(F)
- End connection outlet 1/2” BSP(F)
- Environmental Protections IP 55
- Maximum fluid Temperature (Deg C) 75
- Maximum condenstate discharge quantity at 7Kg/cm2(g) (Liters/hours) 200
- Air compressor after cooler (cfm) 200 to 1000
- Wet Air receiver (m3) 2 to 5
- Prefilter (cfm) 1000 to 8000
- Refrigeration dryer (cfm) 2000
- After filter (cfm) 1000 to 8000
- Dry Air receiver(m3) 2 to 55
- Valve Dimension LxBxH (mm) 101x90x190
- Weight (Kg) 0.9

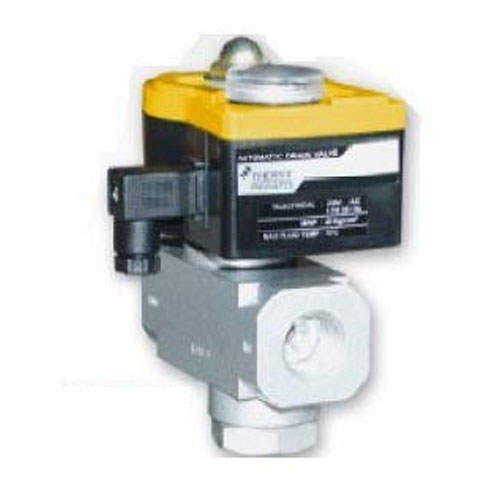

EDV X SS40 AUTOMATIC DRAIN VALVES
Specifications
- Input voltage (AC) 230
- Average power consumption (watts) 7
- Min. working pressure (Kg/cm2(g) 2
- Max. working pressure (Kg/cm2(g) 40
- Timing Cycle 18 min to 32 hrs
- Drain (Sec) 1 to 25
- Valve orifice (mm) 1.3
- End connection inlet 1/2” BSP(F)
- End connection outlet 1/2” BSP(F)
- Environmental Protections IP 55
- Maximum fluid Temperature (Deg C) 75
- Maximum condenstate discharge quantity at 7Kg/cm2(g) (Liters/hours) 29
- Air compressor after cooler (cfm) 100
- Wet Air receiver (m3) 0.5
- Prefilter (cfm) 800
- Refrigeration dryer (cfm) 200
- After filter (cfm) 800
- Dry Air receiver(m3) 0.5
- Valve Dimension LxBxH (mm) 97x90x146
- Weight (Kg) 0.75
